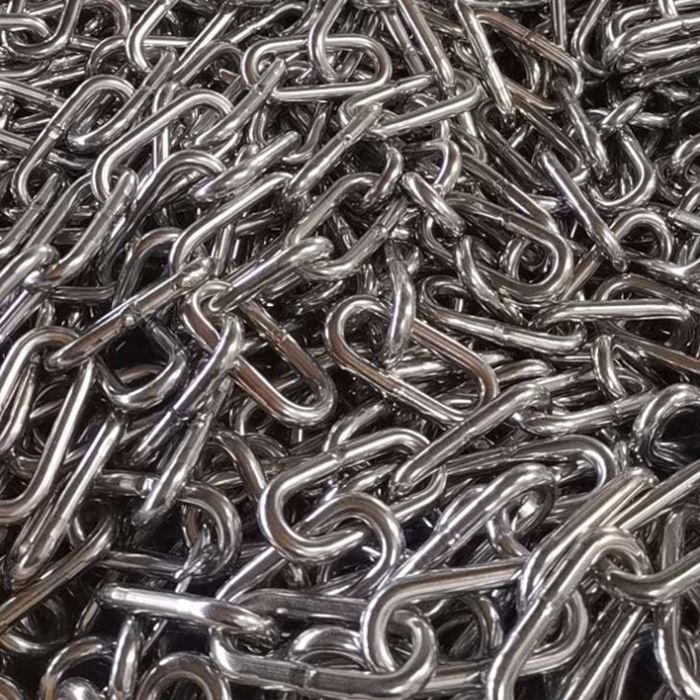

DIN763 Standard Carbon Steel Link Chain
Standard: DIN763 Standard
Quality control: 2.5 times proof load, 4 times safety factor, we can produce g80 SS316 chains.
DIN763 Standard Carbon Steel Link Chain:
Product Name：DIN763 Standard Carbon Steel Link Chain
Material Carbon steel
Surface Treatment：Self-color,polishing,galvanized,blackened,etc.
Safety Factors：4:1
Price Terms：FOB
Advantage：resistant to corrosion &rust; durable
Delivery Detail：Usually 30 days after receiving your irrevocable L/C or advance payment
We also can make the non-standard chain according to the clients' requirements
Technical Parameter:
| Diameter | Pitch | Inner Width | Weight |
MM | MM | MM | KG/m |
2 | 22 | 4 | 0.061 |
2.5 | 24 | 5 | 0.10 |
3 | 26 | 6 | 0.15 |
3.5 | 28 | 7 | 0.20 |
4 | 32 | 8 | 0.27 |
4.5 | 34 | 9 | 0.35 |
5 | 35 | 10 | 0.43 |
6 | 42 | 12 | 0.63 |
7 | 49 | 14 | 0.86 |
8 | 52 | 16 | 1.10 |
9 | 59 | 18 | 1.41 |
13 | 85 | 26 | 2.95 |
16 | 100 | 32 | 4.45 |
