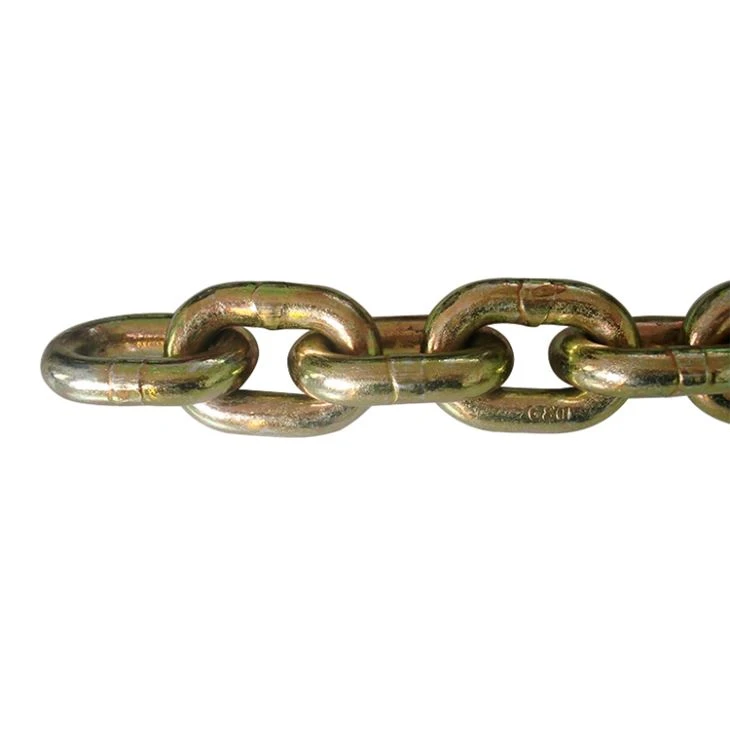

Galvanized DIN5685 Short Link Chain

We are a manufacturer to produce welded link chains, but we also product unwelded chain for special usage. The unwelded chains are just bent links without welding.

Send Inquiry

Product Introduction

Galvanized DIN5685 Short Link Chain:

Ttest:welded test, breaking loading test

Surface:Self colour, Electro galvanized, Hot dipped galvanized , Black finished

Usage:transmission chain

Delivery time:1×20′GP 24tons 30days

2×20’GP 45tons 45days,

3X20′GP 72tons 60days,

MOQ:5TONS

Payment :T/T or LC at sight!

Port:Qingdao

Suppy ability:500 tons per month

Package:gunny bag, iron drum, plastic drum, plastic reel, carton,etc.or according to your requirment!

Galvanized DIN5685 Short Link Chain

Technical Parameter:

SIZE d mm	INSIDE LENGHT t mm	OUTSIDE WIDTH b mm	WEIGHT PER 100m kg	TEST LOAD n	BREAKING LOAD n	TYPE OF LINK
2	12 22	8	7 6	500	1250	A C
2.5	14 24	10	11 10	750	2000	A C
3	16 26	12	16.5 15	1120	2800	AC
3.5	18 28	14	22.5 20	1500	3850	A C
4	19 32	16	30 27	2000	5000	A C
4.5	20 34	18	39.5 35	2500	6300	A C
5	21 35	20	50 43	3150	7750	A C
5.5	23 38.5	22	60.5 52	3800	9500	A C
6	24 42	24	73 63	4500	11500	A C
6.5	26 45.5	26	86 74	5400	13500	A C
7	28 49	28	100 86	6000	15000	A C
8	32 52	32	130 110	8000	20000	A C
8.5	34 56	34	149 125	9000	22500	A C
9	36 59	26	164 141	10000	25000	A C
10	40 65	40	205 175	12500	31000	A C
11	44 72	44	250 211	15000	38000	A C
12	48 78	48	290 255	18000	45000	A C
13	52 82	52	345 295	21200	53000	A C
