European Single Girder Electric Wire Rope Hoist

• FE grade manufacturing, steady start, very low running noise.
• Gear material is chrome combination gold, very low wear.
• Protection class IP55, H-class insulation, long service life of motor and reducer.
• Dustproof design, beautiful appearance, low mounting structure, light weight, maintenance-free.
• Unique advantages, in line with international and domestic design standards.
• 5-10 times longer service life than ordinary hoists, reliable and cost-effective.

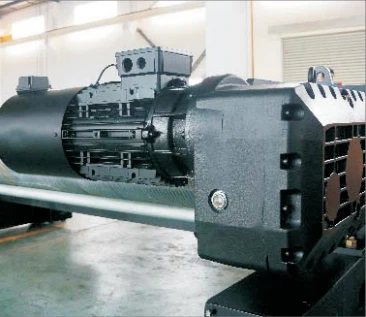

Lifting gear motor

The gear box is oil bathed three staged, precision gridded and encased by leakage free cast aluminum covers, which is designed for easy heat dissipation and maintance. Low headroom designed along with the max lifting capacity to be cost saving and inprove the efficiency. The lifting motor is with double speeds (high speed versus low speed ratio up to 6：1), with the low speed you can handle with precision and high speed for efficiency.

Rope drum and rope guider

The rope drum is deeply grooved with high quality seamless steeltube and high tensile rope guider and rope adopted, to make sure optimum line arrangement, higher safety factor andlonger usagelife.
