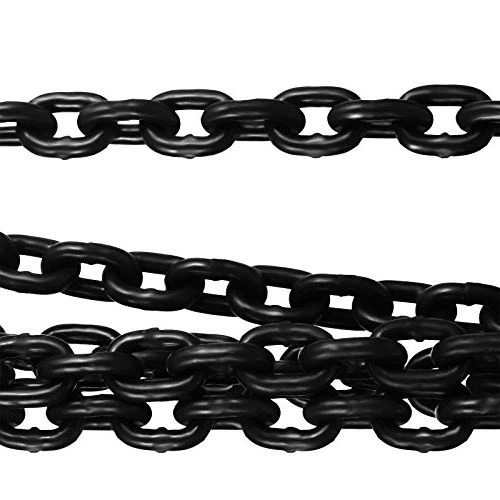

DIN 5687 Round Steel Chain
Product Introduction:
DIN 5687 round steel chain is an indispensable lifting device for lifting, lifting and transferring heavy objects, and can also be used for rigging combination for operation. Bstls specializes in the production of Grade 80 of 6mm-32mm, which is made of high-quality alloy steel.
DIN 5687 round steel chain details:
Size (mm) | Inner (mm) | Width (mm) | Weight | Break | |||
Dia | error | length | error | inner min. | width Max | ||
6 | ±0.2 | 18 | ±0.5 | 8.0 | 21.6 | 0.8 | 45.22 |
8 | ±0.3 | 24 | ±0.7 | 10.8 | 28.8 | 1.4 | 80.38 |
10 | ±0.4 | 30 | ±0.9 | 13.5 | 36.0 | 2.2 | 125.60 |
13 | ±0.5 | 39 | ±1.2 | 17.5 | 46.8 | 3.8 | 212.26 |
16 | ±0.6 | 48 | ±1.4 | 21.5 | 57.6 | 5.7 | 321.54 |
18 | ±0.9 | 54 | ±1.6 | 24.3 | 64.8 | 7.3 | 406.94 |
20 | ±1.0 | 60 | ±1.8 | 27.0 | 72.0 | 9.0 | 502.40 |
22 | ±1.1 | 66 | ±2.0 | 29.5 | 79.2 | 10.9 | 607.90 |
26 | ±1.3 | 92 | ±2.3 | 35.0 | 93.6 | 13.9 | 849.06 |
28 | ±1.4 | 108 | ±2.5 | 37.8 | 100.8 | 16.5 | 984.06 |
32 | ±1.5 | 116 | ±2.8 | 44.5 | 114.0 | 22.8 | 128 |
FAQ:
Q:How do you control your quality?
A:First,selection of high-quality raw material from good steel factory.
Second,fully produced according to standard process and testing requirement.
Third,ISO quality management system certified factory.
Q:What's your delivery time for one full container?
A:We need about 30 days to deliver one full container.
Q:Can I get samples?
A:We can supply you samples for free if you just need several links of chains.But you need to pay for the express charge.
