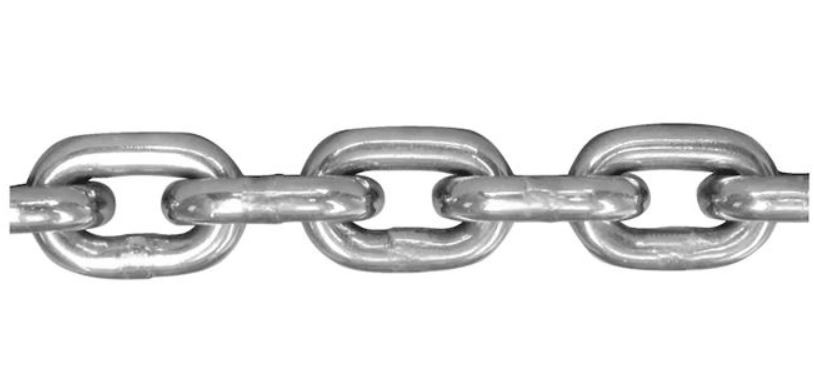

DIN5685 Stainless Steel Link Chain
Din5685 welded link chain:
Material: SS304, SS316 or SS316L
Commodity:6mm DIN5685 Electro Galvanized Long Link Chain
Size:2mm to 13mm
Surface treatment:self-color,polish,blacken,paint,plastic coat;hot-dip galvanize,electro-galvanized
MOQ:500kgs
Supply ability:500 Tons per month
Delivery time:Shipped in 30 days after payment
Din5685 welded link chain details:
dia | inner length | inner width | wht/m |
MM | MM | MM | KG |
2 | 12 | 4 | 0.071 |
2.5 | 14 | 5 | 0.114 |
3 | 10 | 6 | 0.165 |
4 | 19 | 8 | 0.30 |
5 | 21 | 10 | 0.50 |
6 | 24 | 12 | 0.73 |
7 | 28 | 14 | 1.00 |
8 | 32 | 16 | 1.30 |
9 | 36 | 18 | 1.65 |
10 | 40 | 20 | 2.05 |
13 | 52 | 26 | 3.45 |
