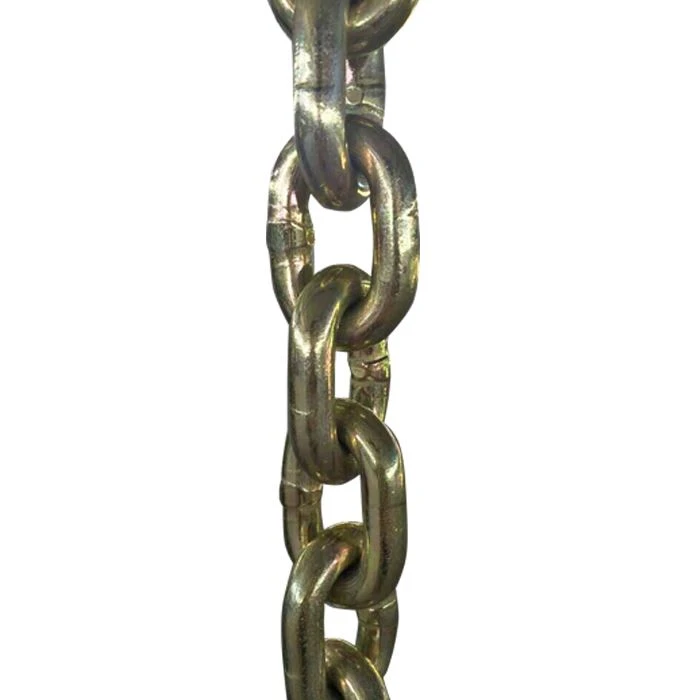

En818-2 Alloy Steel Chain

Place of Origin: Henan, China Material: Alloy, Stainless Steel, Carbon Steel Function: Drag Chain Structure: Welded Chain Standard or Nonstandard: Standard Product name: Lifting Chain Surface treatment: Zinc plated, Painting,Polish etc Application: Load Lifting Factory: Yes, We Have Factory...

Send Inquiry

Product Introduction

En818-2 alloy steel chain:

Place of Origin: Henan, China

Material: Alloy, Stainless Steel, Carbon Steel

Function: Drag Chain

Structure: Welded Chain

Standard or Nonstandard: Standard

Product name: Lifting Chain

Surface treatment: Zinc plated, Painting,Polish etc

Application: Load Lifting

Packing: in carton then on steel pallet

Diameter: 6mm,8mm,13mm etc,customized size

Sample time: 3 days

MOQ: 50meters

Color: Black, Gold, Customized

Technical Parameter:

Dia mm	inner length mm	outer width mm	Working load( ton)	Testing Load(KN)	Breaking Load(KN)	weight Kg/m
4	12	13.3	0.488	12.33	19.70	0.35
5	15	17	0.75	19.28	30.8	0.54
6	18	20	1.12	28.3	45.2	0.8
7	21	24	1.5	38.5	61.6	1.1
8	24	27	2	50.3	80.4	1.4
9	27	30	2.49	62.4	99.8	18
10	30	34	3.15	78.5	126	2.2
11	33	37	3.715	93.2	149	2.74
12	36	41	4.41	106.2	177.4	3.24
13	39	45	5.3	133	212	3.8
14	42	48	6	152	242	4.3
16	48	54	8	201	322	5.7
18	54	62.64	10	254	407	7.3
19	57	66	11.37	283	453	8
20	60	70	12.5	314	503	9
22	66	74	15	380	608	10.9

Surface Treatments	Zinc Plated(Galvanized), Painting, Polish, Black
Material	Stainless steel 304 or 316, 20Mn2, 20MnSi ,Alloy
Standard	EUROPEAN TYPE,JIS TYPE, US. TYPE, DIN TYPE
Size	All kinds of type or according to customer's design
Heat treated	drop forged, tempered and quenched
