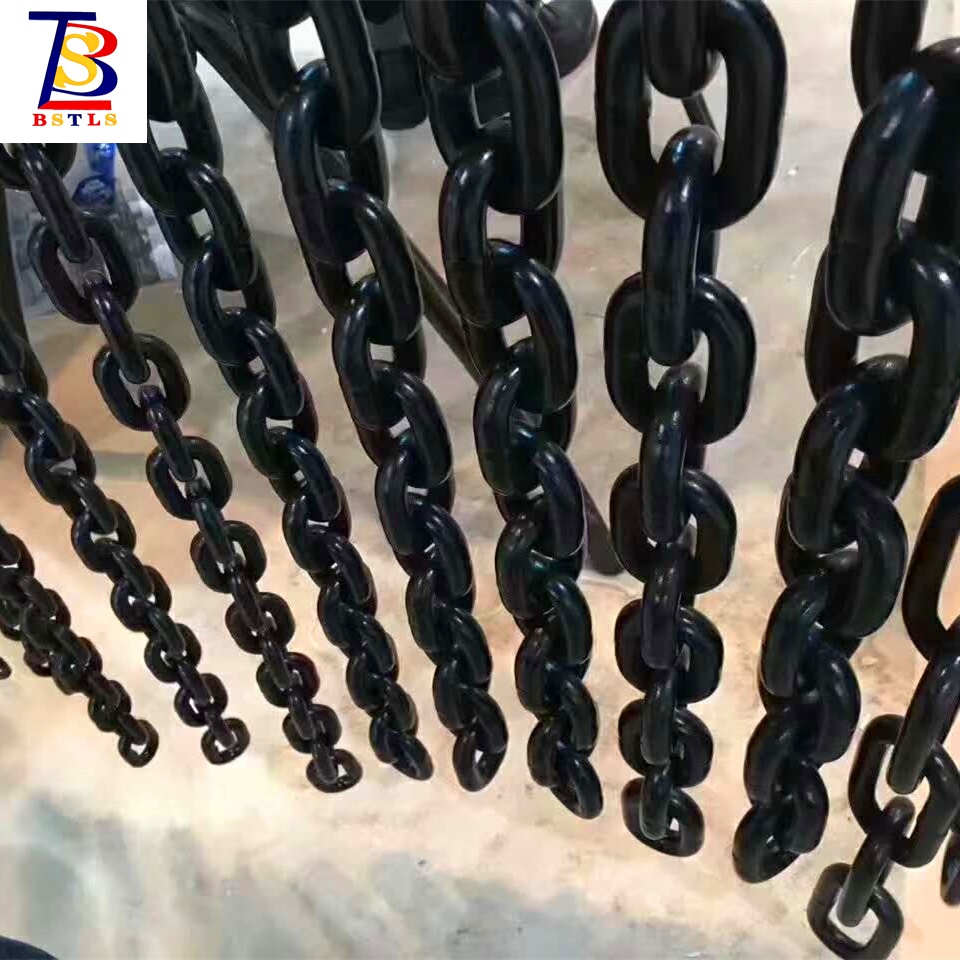

Grade 100 Alloy Steel Lifting Chain
Grade 100 Alloy Steel Lifting Chain

Grade 100 Alloy Steel Lifting Chain

Grade 100 chain was specifically designed to for the rigorous requirements of overhead lifting applications. Grade 100 Chain is a Premium quality high strength alloy steel. Grade 100 Chain has a 20 percent increase in working load limit as compared to a similar size chain in Grade 80. This allows you to reduce the size of the chain depending on the working load needed. Grade 100 chains are also referred to as Grade 10, System 10, Spectrum 10. Grade 100 Chain IS approved for overhead lifting.

Send Inquiry

Product Introduction

Product Description

Grade 100 chain was specifically designed to for the rigorous requirements of overhead lifting applications. Grade 100 Chain is a Premium quality high strength alloy steel. Grade 100 Chain has a 20 percent increase in working load limit as compared to a similar size chain in Grade 80. This allows you to reduce the size of the chain depending on the working load needed. Grade 100 chains are also referred to as Grade 10, System 10, Spectrum 10. Grade 100 Chain IS approved for overhead lifting.

Chain Material: 20Mn2A, 25MnV, 23MnNiCrMo54 etc

Production standard:EN818-2

Chain grade:G80

Hardness: 38-42HRC

Safety factor:6 meter breaking load test, 2.5 times proof load test, 4 times safety factor.

Surface treatment: Blackened

Product Specification of Grade 100 Chains:

CHAIN SIZE INCH	CHAIN SIZE MM	WORKING LOAD LIMIT (LBS)	WEIGHT PER FOOT (LBS)	MATERIAL SIZE INCH	INSIDE LENGTH INCH	INSIDE LENGTH MM	INSIDE WIDTH INCH	INSIDE WIDTH MM
7/32"**	6	3,100	0.54	0.25"	0.71"	18	0.38"	7.95
9/32"	7	4,300	0.73	0.275"	0.88"	22	0.41"	10
5/16"	8	5,700	1.06	0.330"	1.02	26	0.49	13
3/8"	10	8,800	1.52	0.397"	1.22"	31	0.57"	14
1/2"	13	15,000	2.72	0.52"	1.56"	40	0.75"	20
5/8"	16	22,600	3.72	0.63"	1.93"	49	0.92"	23
