Short Link Chain

We are specialized in supplying G80 round steel link chains, G70 transport chain, G30 proof coil link chain, short or long link chain and chain sling to satisfy your different lifting requirements.

Send Inquiry

Product Introduction

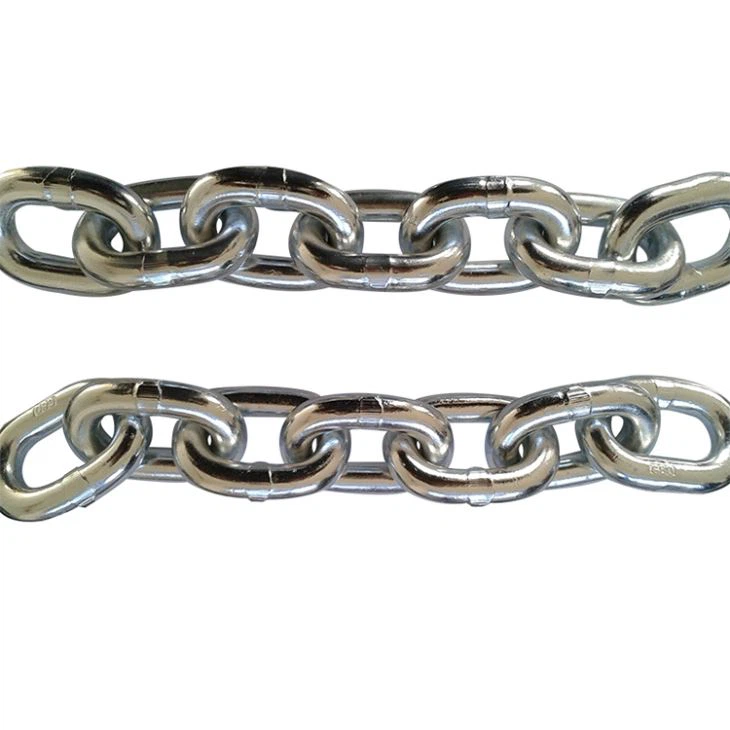

EN818-2 Short Link Chain

We are specialized in supplying G80 round steel link chains, G70 transport chain, G30 proof coil link chain, short or long link chain and chain sling to satisfy your different lifting requirements. We produce G80 chains by automatic bending, trimming and welding machines, and automatic test machine, and our g80 chains will be used for chain sling, chain block, lever hoist, electric chain hoist etc, each lot alloy chains are issued test reports by our engineers. Our products have been exported to Korea, Canada, Colombia, Italy, South Africa, United State etc, please contact us for more information.

Technical Parameter:

Diameter mm	Pitch mm	Outside width mm	Working load limit ton	Proof load KN	Breaking load KN	Weight Kg/m
4	12	13.3	0.488	12.33	19.70	0.35
5	15	17	0.75	19.28	30.8	0.54
6	18	20	1.12	28.3	45.2	0.8
7	21	24	1.5	38.5	61.6	1.1
8	24	27	2	50.3	80.4	1.4
9	27	30	2.49	62.4	99.8	18
10	30	34	3.15	78.5	126	2.2
11	33	37	3.715	93.2	149	2.74
12	36	41	4.41	106.2	177.4	3.24
13	39	45	5.3	133	212	3.8
14	42	48	6	152	242	4.3
16	48	54	8	201	322	5.7
18	54	62.64	10	254	407	7.3
19	57	66	11.37	283	453	8
20	60	70	12.5	314	503	9
22	66	74	15	380	608	10.9
