Grade 8 Short Link Lifting Chain Is Fully Compliant With EN818-2

The BEST CHAIN'S Grade 8 chain is suitable for use in a temperature range of -40°C up to 200°C without reduction in working load limit, reductions apply up to 400°C.

Send Inquiry

Product Introduction

Product Description

Grade 8 short link lifting chain is fully compliant with EN818-2

The Grade 8 chain is embossed with manufacturer's mark and grade (MA8) and class leading batch code traceability.
All sizes for HENAN BEST CHAIN Grade 8 are proof tested at manufacture to 2.5 times the given working load limit and have a range of diameters from 7mm - 32mm.

Chain Specifications of Grade 8 short link chain in accordance with EN818-2

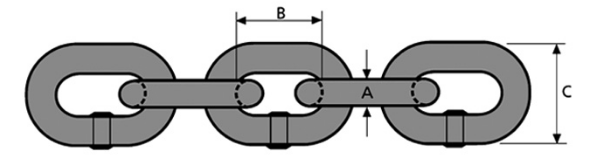

diameter Mm (A)	Pitch Mm (B)	Outside width Mm (C)	Working load limit ton	Proof load KN	Breaking load KN	Weight Kg/m
6	18	20	1.12	28.3	45.2	0.8
7	21	24	1.5	38.5	61.6	1.1
8	24	27	2	50.3	80.4	1.4
9	27	30	2.49	62.4	99.8	18
10	30	34	3.15	78.5	126	2.2
11	33	37	3.715	93.2	149	2.74
12	36	41	4.41	106.2	177.4	3.24
13	39	45	5.3	133	212	3.8
14	42	48	6	152	242	4.3
16	48	54	8	201	322	5.7
18	54	62.64	10	254	407	7.3
19	57	66	11.37	283	453	8
20	60	70	12.5	314	503	9
