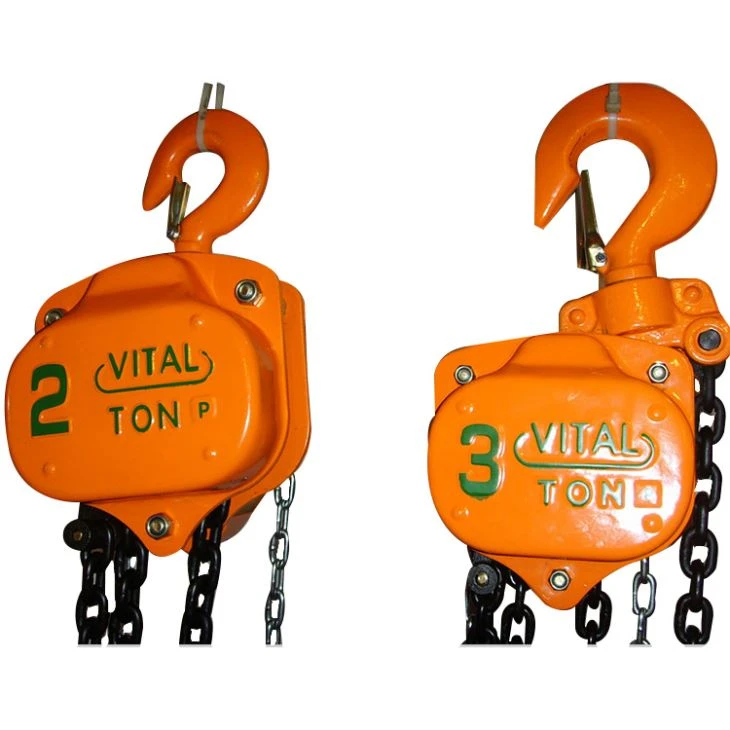

HSZ Vital Chain Hoist
HSZ Vital Chain Block
HSZ vital type series of chain hoist is a kind of hand-moving and carry-home hoisting machinery. It can be widely used in production and field construction of factories, mine and agriculture, electric power etc. It especially used in field service and without power such as the installation of the machines in docks, boatyards and warehouse, hoisting goods and loading and unloading vehicle.
Technical Parameter:
| Item No. | HSZ-VT | HSZ-VT | HSZ-VT | HSZ-VT | HSZ-VT | HSZ-VT | HSZ-VT | HSZ-VT | |
0.5T | 1T | 1.5T | 2T | 3T | 5T | 10T | 20T | ||
Capacity (t) | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 10 | 20 | |
Standard lift (m) | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | |
No.of load chain falls | 1 | 1 | 1 | 1 | 2 | 2 | 4 | 8 | |
Running required to lift rated load (Kn) | 7.5 | 15 | 22.5 | 30 | 45 | 62.5 | 125 | 250 | |
Load Chain Dia. | 6*18 | 6*18 | 8*24 | 8*24 | 8*24 | 10*30 | 10*30 | 10*30 | |
Effort required to lift Max. load (N) | 231 | 309 | 320 | 320 | 360 | 414 | 420 | 420X2 | |
A (mm) | 131 | 143 | 148 | 152 | 148 | 186 | 207 | 215 | |
B (mm) | 127 | 156 | 182 | 198 | 182 | 253 | 398 | 650 | |
C (mm) | 270 | 317 | 399 | 414 | 465 | 636 | 798 | 890 | |
35 | 35.5 | 45 | 42.5 | 50 | 64 | 85 | 110 | ||
30 | 28 | 36 | 33.5 | 40 | 50 | 64 | 85 | ||
Net weight (kg) | 7 | 10.5 | 17 | 20 | 27 | 45.5 | 83 | 193 | |
Hand calabash is also called immortal calabash, chain calabash, chain, jin do not fall, manual calabash, is a simple use, carry convenient manual lifting machinery, also known as "chain calabash" or "chain chain". It is suitable for short distance lifting of small equipment and goods. The lifting weight is generally less than 10T, the maximum is up to 20T, and the lifting height is generally less than 6m. The shell material of the hand-pulled hoist is high quality alloy steel, strong and wear-resistant, with high safety performance. When lifting heavy objects up, pull the chain and hand sprocket clockwise to rotate, and pull the chain counterclockwise when descending. The brake seat is separated from the brake pad, and the ratchet is still under the action of the pawl. The five-tooth long axis drives the lifting sprocket to run in the opposite direction, so as to lift the heavy objects smoothly.
