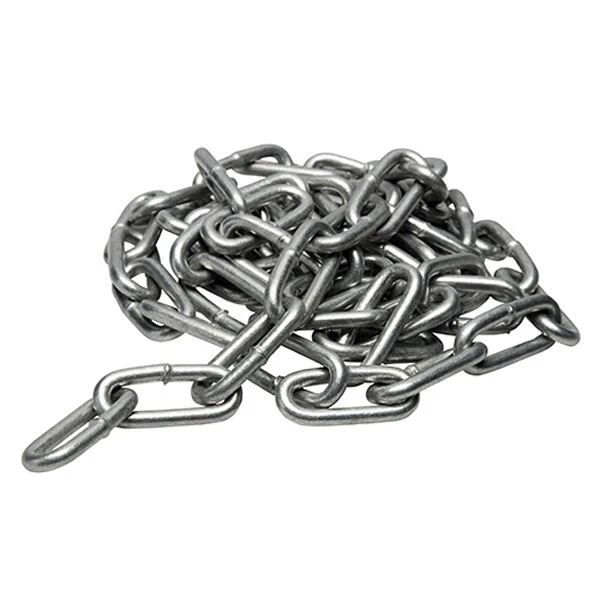

DIN763 Link Chain

Material: SUS304, SUS316, SUS402 etc
Standard: DIN763 Standard
Quality control: 2.5 times proof load, 4 times safety factor, we can produce g80 SS316 chains.

Send Inquiry

Product Introduction

DIN763 Link Chain:

Grade:G30,G40,G43,G70,G80,G100
Surface: Self Color,Zinc Plated,Black,Hot Dip Galvanized
Material: Q235,Q195,Mild Carbon Steel,20Mn2,Stainless Steel
Purpose: Lifting,Lashing,Fishing,Mining,Animal and so on
Packing: Gunny Bag,Steel Drum,Wooden Case,Carton,Pallet

DIN763 Standard SS Chain Dimension:

Diameter	Pitch	Inner Width	Weight
MM	MM	MM	KG/m
2	22	4	0.061
2.5	24	5	0.10
3	26	6	0.15
3.5	28	7	0.20
4	32	8	0.27
4.5	34	9	0.35
5	35	10	0.43
6	42	12	0.63
7	49	14	0.86
8	52	16	1.10
9	59	18	1.41
13	85	26	2.95
16	100	32	4.45

Packaging & Delivery:

Bulk packing

Packed in wooden cases

Packed in Iron drum, then in pallets

According to your requirements

*Delivery Detail: Usually 30 days after receiving your irrevocable L/C or advance payment.
