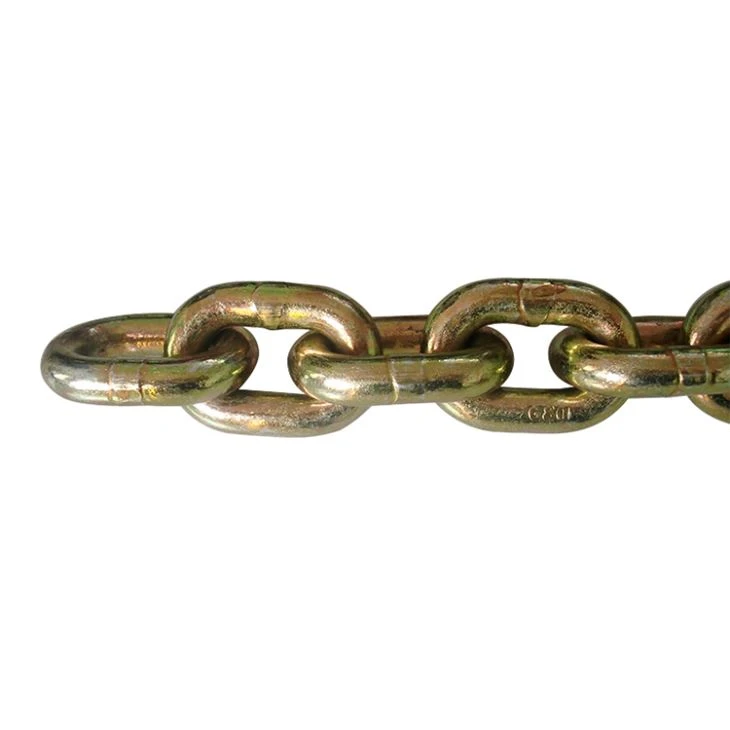

South Africa Standard Lifting Chain

Material: SUS304, SUS316, SUS402 etc
Standard: DIN763 Standard
Quality control: 2.5 times proof load, 4 times safety factor, we can produce g80 SS316 chains.

Send Inquiry

Product Introduction

South Africa standard lifting chain:

Lifting chains are mainly used for lifting and transferring goods, and can also be used for rigging operations. Our factory produces 6mm-22mm 80-level and 100-level lifting chains. The impact resistance, bearing capacity, toughness and elongation of high-strength lifting chains comply with South African standards. The standard is produced with high-quality alloy steel.

Chain material: 20Mn2A, 20Mn2K, 20Mn2, 25MnV and other series

Chain standard: SANS 1592:2005

Chain level: level 80

Safety guarantee: 6m load test (2～2.5WLL), 4WLL safety factor.

Surface treatment: blackening, electro-galvanizing, dipping

Technical parameters:

chain dia (dn )	dia error	inner length p	inner error	inner width min w1	outer width Max W2
5,0	+0,10 -0,30	15,0	0,29	6,3	17,4
6,0	+0,12 -0,36	18,0	0,35	7,5	20,5
6,3	+0,13 -0,38	19,0	0,37	7,9	21,5
7,1	+0,14 -0,43	21,0	0,41	8,9	23,5
8,0	+0,16 -0,48	24,0	0,46	10,0	26,6
9,0	+0,18 -0,54	27,0	0,52	11,3	30,7
10,0	±0,40	28,0	0,35	12,0	34,0
10,0	+0,20 -0,60	30,0	0,58	12,5	33,8
11,2	+0,22 -0,67	34,0	0,66	14,0	37,8
12,5	+0,25 -0,75	38,0	0,73	15,6	41,9
