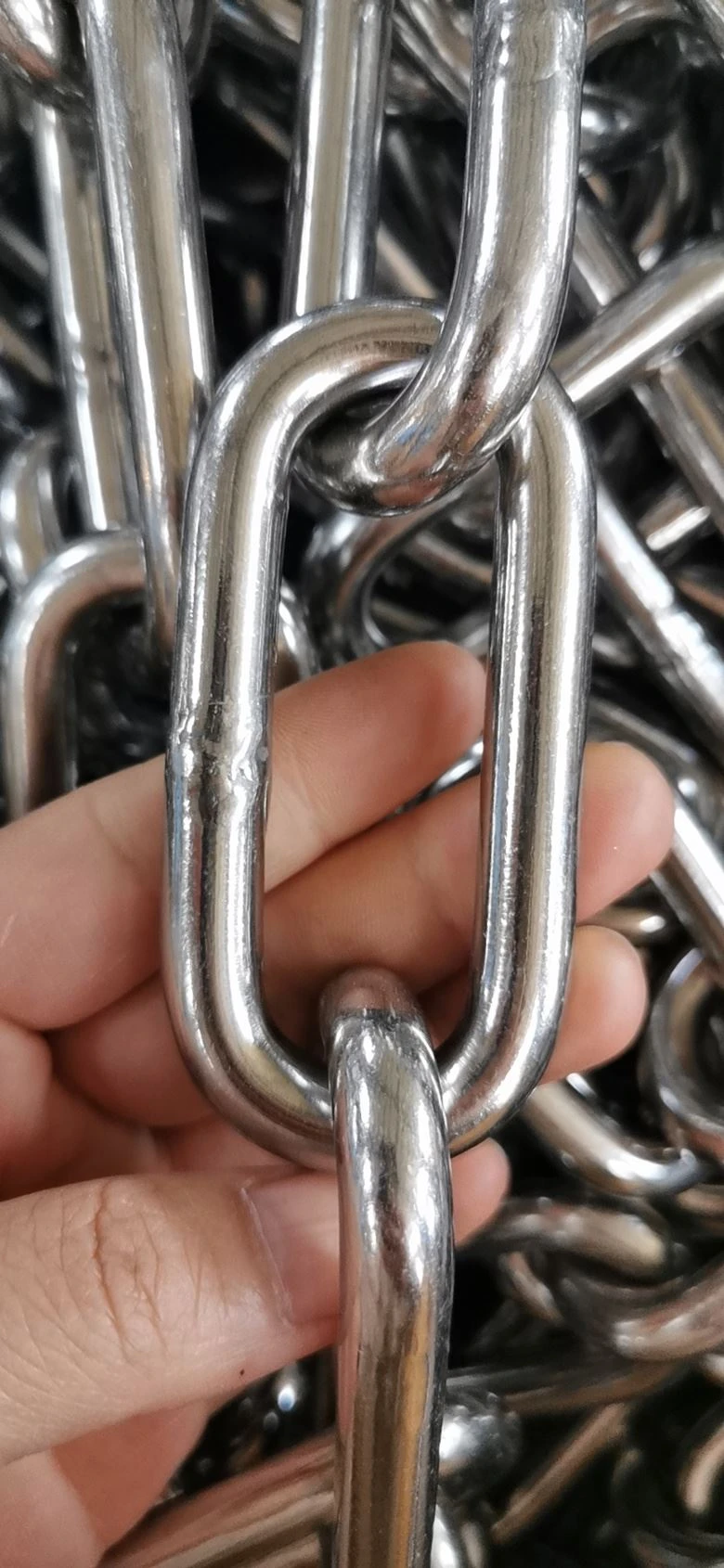

DIN 763 Long Link Chain
DIN 763 Long Link Chain:
Chain DIN 763 is a kind of welded long link chain. Long link chain should never be used as a sling in either "basket" hitch or chokes confiquration. Chain din 763 is non-calibrated and tested. The chain is made to DIN 763 and EN standards, with links side.welded for extra strength and quality tested.
The chain is suitable for all qeneral purposes, engineerinq, industrial, agricultura and marine applications in coniunction with our accessories.
Specification of DIN763 Long Link Chain:
| Size | Inside Length | Outside Width | Working | Test | Breading | Weight | |||
| d | t | b | Load | Load | Load | Per | |||
| mm | ±mm | mm | ±mm | mm | ±mm | kg | N | N | M |
| 2 | 0.5 | 22 | 1.0 | 8 | 0.4 | 25 | 800 | 1250 | 0.06 |
| 2.5 | 24 | 1.1 | 10 | 0.5 | 40 | 800 | 2000 | 0.10 | |
| 3 | 26 | 1.2 | 12 | 0.6 | 55 | 1050 | 3200 | 0.15 | |
| 3.5 | 28 | 1.3 | 14 | 0.7 | 80 | 1540 | 3850 | 0.20 | |
| 4 | 32 | 1.5 | 16 | 0.8 | 100 | 2500 | 6500 | 0.27 | |
| 4.5 | 34 | 1.7 | 18 | 0.9 | 128 | 3000 | 8000 | 0.35 | |
| 5 | 35 | 1.8 | 20 | 1.0 | 160 | 4000 | 10000 | 0.43 | |
| 5.5 | 38.5 | 1.8 | 22 | 1.1 | 195 | 4200 | 10500 | 0.52 | |
| 6 | 42 | 2.0 | 24 | 1.2 | 200 | 5000 | 12000 | 0.63 | |
| 7 | 49 | 2.5 | 28 | 1.4 | 300 | 7500 | 19000 | 0.86 | |
| 8 | 52 | 2.5 | 32 | 1.6 | 400 | 10000 | 25000 | 1.10 | |
| 8.5 | 56 | 2.8 | 34 | 1.7 | 460 | 10200 | 25500 | 1.25 | |
| 9 | 59 | 3.0 | 36 | 1.8 | 530 | 10500 | 32000 | 1.41 | |
