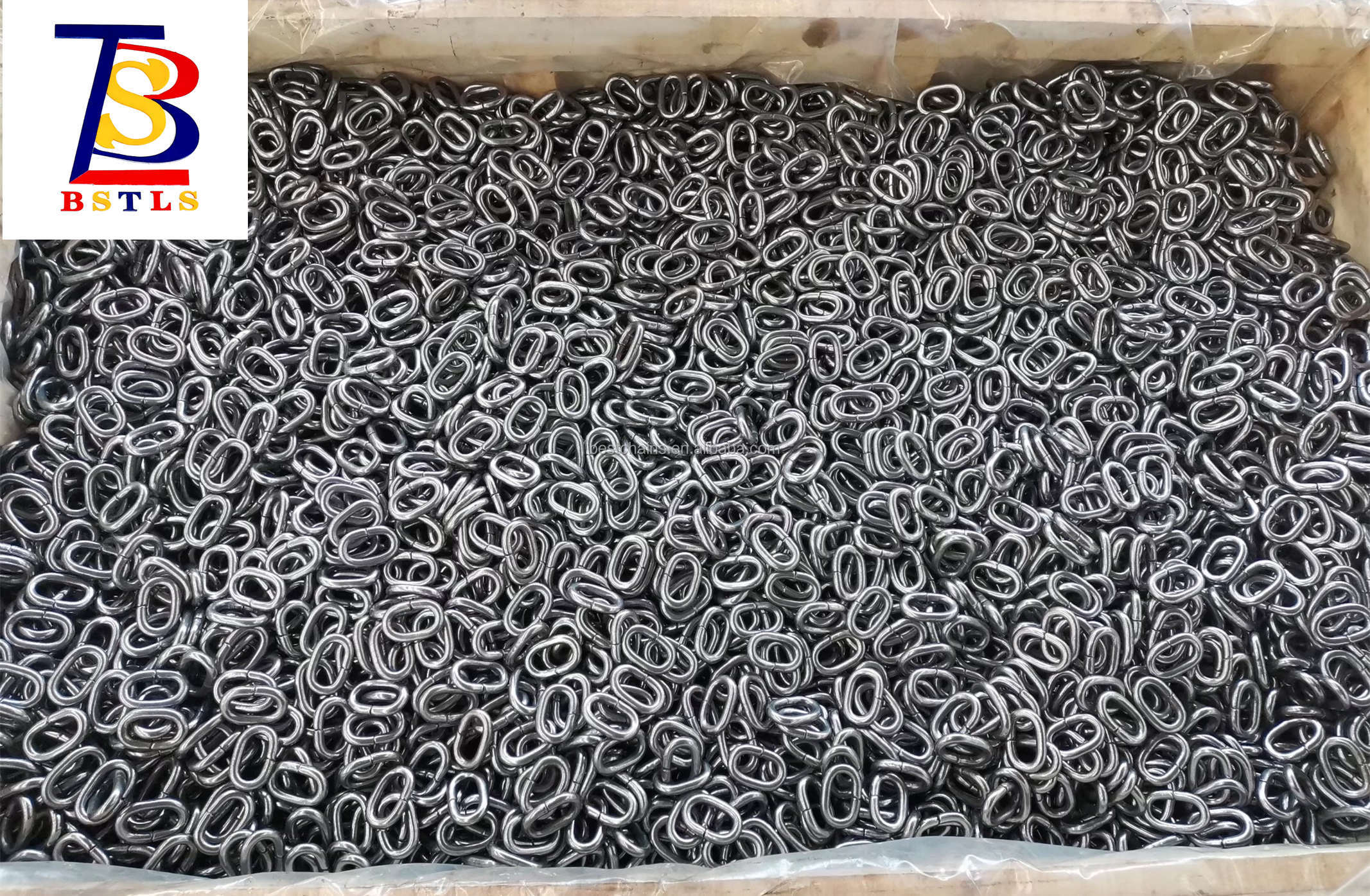

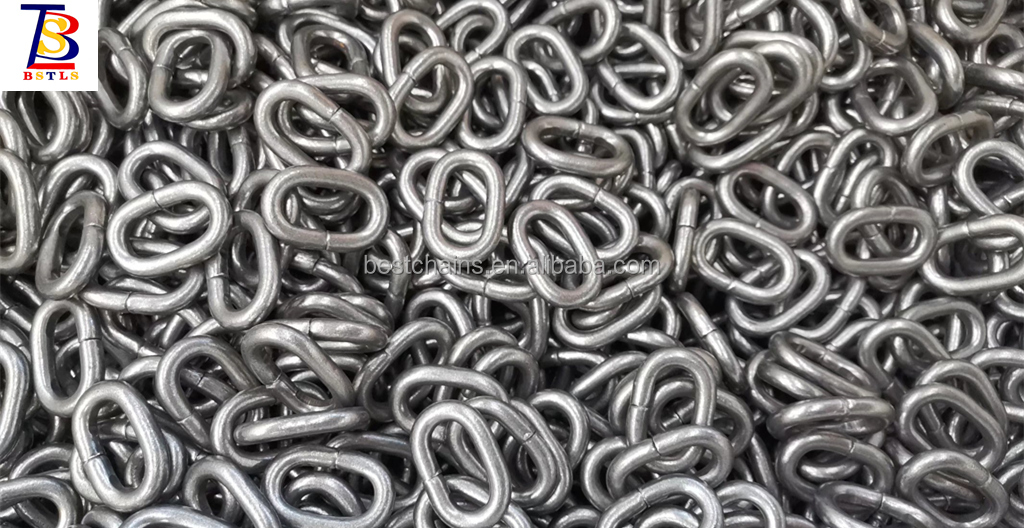

DIN5685A/C Unwelded Link Chain is non-calibrated, non-welded carbon steel link chains, which is not usded for lifting purpose. cntinuous conveyors or mining purpose. We make production by fully automatic production machine, Please note Such chains are not suitable for use with lifting appliances as defined in DIN 15003, nor for being subjected to static loads.

Send Inquiry

Product Introduction

Product Description

Specification of Chain DIN5685A/C

(It will be non welded links, which will be made in accordance to DIN5685A/C):

SIZE d mm	INSIDE LENGHT t mm	OUTSIDE WIDTH b mm	WEIGHT PER 100m kg	TEST LOAD n	BREAKING LOAD n	TYPE OF LINK
2	12 22	8	7 6	500	1250	A C
2.5	14 24	10	11 10	750	2000	A C
3	16 26	12	16.5 15	1120	2800	A C
3.5	18 28	14	22.5 20	1500	3850	A C
4	19 32	16	30 27	2000	5000	A C
4.5	20 34	18	39.5 35	2500	6300	A C
5	21 35	20	50 43	3150	7750	A C
5.5	23 38.5	22	60.5 52	3800	9500	A C
6	24 42	24	73 63	4500	11500	A C
6.5	26 45.5	26	86 74	5400	13500	A C
7	28 49	28	100 86	6000	15000	A C
8	32 52	32	130 110	8000	20000	A C
8.5	34 56	34	149 125	9000	22500	A C
9	36 59	26	164 141	10000	25000	A C
10	40 65	40	205 175	12500	31000	A C
11	44 72	44	250 211	15000	38000	A C
12	48 78	48	290 255	18000	45000	A C
13	52 82	52	345 295	21200	53000	A C
