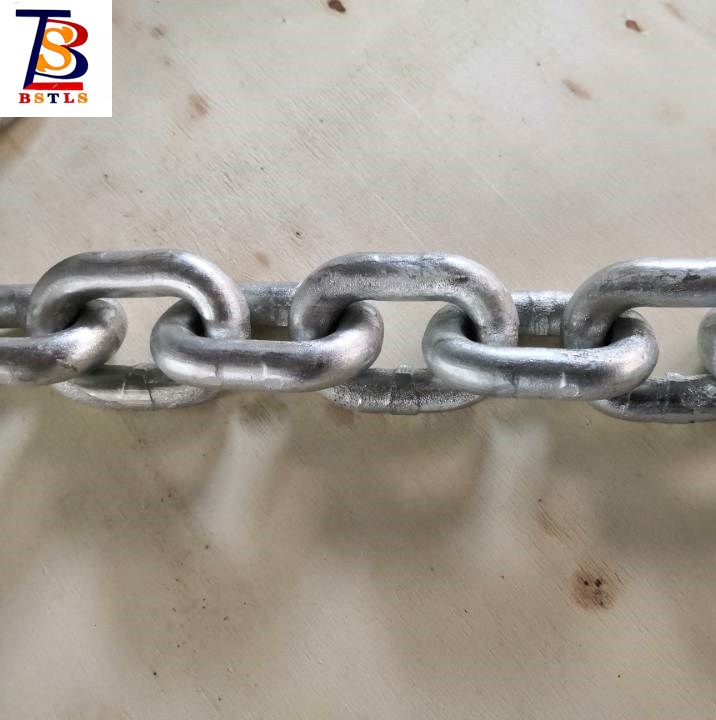

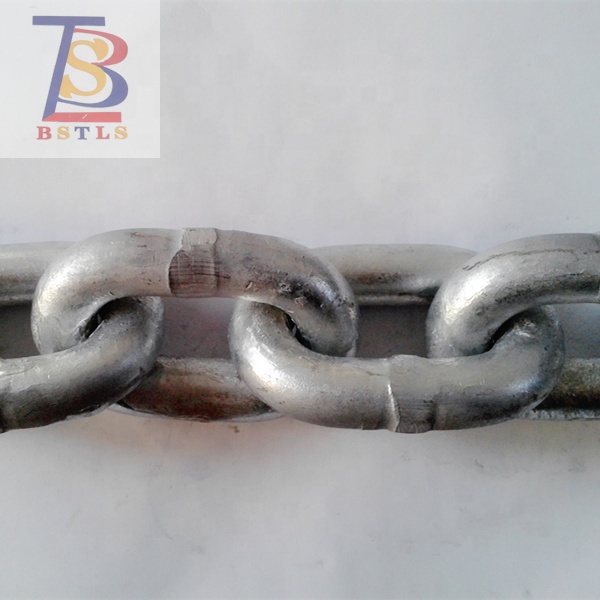

G43 Tested And Calibrated Galvanized Link Chain

A high tensile strength carbon steel anchor (windlass) chain with an ISO short link that provides greater strength-to-weight ratio than proof coil chain. The short link makes it more flexible and ideally suited as a windlass chain. Check the fit or contact windlass manufacturer before purchase. This extra thick hot dip galvanized finish is recommended for all marine applications. High Test ISO Chain is stamped with G4 and is available either in a self-colored or hot dipped galvanized finish. NOT for overhead lifting.

Send Inquiry

Product Introduction

HOT DIPPED GALVANIZED GRADE 43 HIGH TEST CHAINS:

ISO High Test Chain uses high tensile strength carbon steel that provides a greater strength-to-weight ratio than proof coil chain. ISO short pitch link which makes it more flexible and ideally suited as a windlass chain. Each link is proof tested and calibrated.

Check manufacturer’s specification prior to purchase.

Finish: Hot Dip Galvanized

Packaging: Full and Half Drums

Warning: Working Load Limit must not be exceeded. Not to be used for lifting or hoisting applications.

Specification of G43 High Test Chain in NACM Standard:

NORMINAL SIZE		MATERIAL DIAMETER		WORKING LOAD LIMIT(MAX)		PROOFTEST (MIN)		BREAKING FORCE MIN		IMSIDE LENGTH (MAX)		INSIDE WIDTH (MIN)
mm	in	mm	in	kg	lb	kn	lb	kn	lb	mm	in	mm	in
7.0	1/4	7.0	0.276	1180	2800	17.3	3900	34.6	7800	31.5	1.24	9.8	0.38
8.7	5/16	8.7	0.343	1770	3900	26.0	5850	52.0	11700	32.8	1.29	11.2	0.44
10.0	3/8	10.3	0.406	2450	5400	36.0	8100	72.0	16200	35.0	1.38	14.0	0.55
11.9	7/16	11.9	0.468	3270	7200	48.0	10800	96.0	21600	41.6	1.64	16.6	0.65
13.0	1/2	13.5	0.531	4170	9200	61.3	13800	122.6	27600	45.5	1.79	18.2	0.72
16.0	5/8	16.0	0.630	5910	13000	86.5	19500	173.0	39000	56.0	2.2	20.0	0.79
